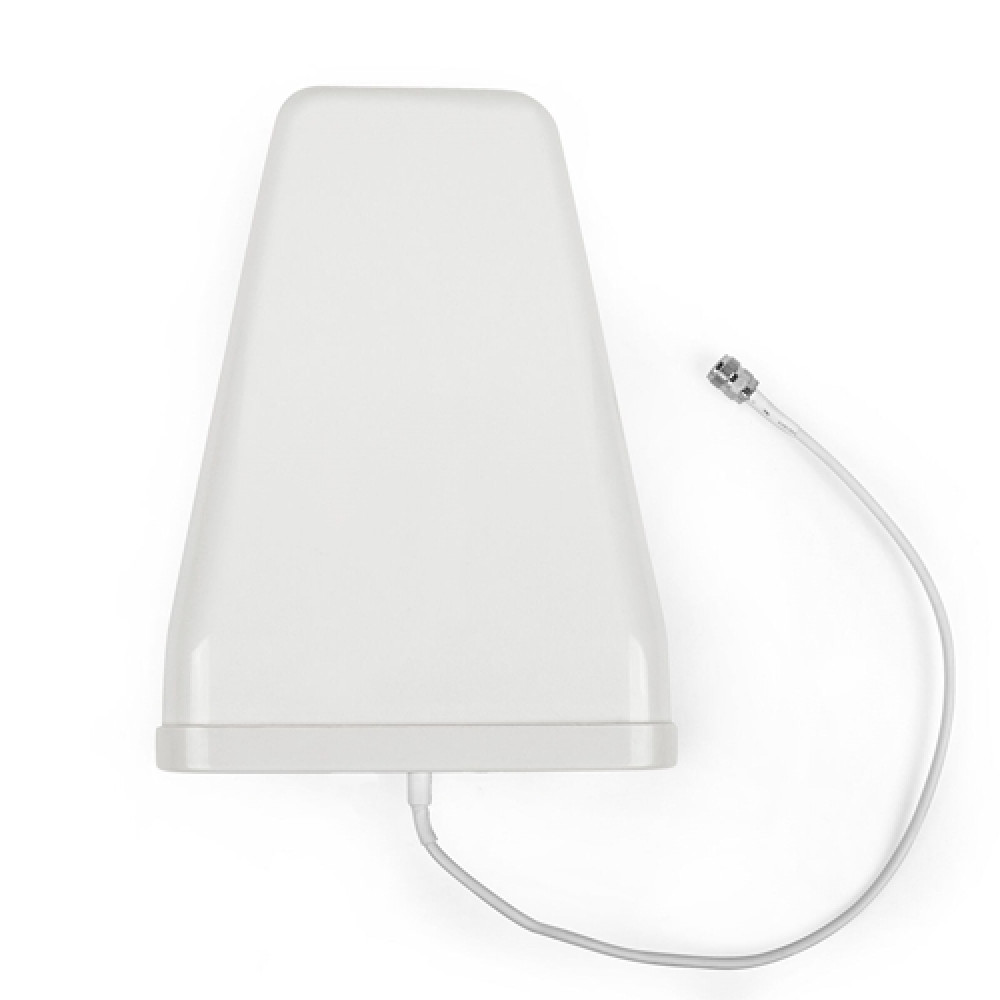

9dBi 800~2700mhz N Female Outdoor LPDA Yagi Antenna

9dBi 800~2700mhz N Female Outdoor LPDA Yagi Antenna

| 0 reviews
RM73.50 RM150.00
51% OFF
SKU: 9dBi
Item left 18
Sold By CHMOBILECAM
Warranty 7 Day Warranty
Weight 0.70 Kg
Shipping
Gvado Standard DeliveryStandard Delivery

logoONLY release payment to the merchants after the items were received by the buyers.

Share

CHMOBILECAM

VISIT SHOP

Products

456

Ratings

ASK SELLER

Price Drop Notifications

NOTIFY ME


An Lpda (Log-periodic Dipole Array) Antenna Is an Assembly of Dipole Elements, With Each Element Longer Than the One in Front of It, Giving the Antenna a Triangular Shape. Because It Has Many Dipole Elements of Different Lengths, an Lpda Antenna Can Transmit and Receive Across the Entire Range of Frequencies Used by Cellular Carriers (800 ~ 2700 Mhz).


Highlight

  • Low Profile Aesthetically Neutral Housing.
  • Ip65 Rated Weatherploof Ingression Protection.
  • For Use Outside Commercial Buildings, Offices, and Homes.
  • Frequency Range 800 ~ 2700mhz. Support Gsm/dcs/umts/cdma/wcdma/lte/2g/3g/4g.
  • Attractive, Compact Design and Form Factor Ideal for Outdoor Solution Applications.
  • Receives Outside Signal From a Cell Phone Tower and Directs It to a Cell Phone Signal Booster.


Functional Description

  • Color: White
  • Material: Abs
  • Gain: 9dbi
  • Frequency Range: 800 ~ 2700mhz
  • Polarization:vertical
  • Beamwidth Horizontal Plane: 90° (Average)
  • Beamwidth Vertical Plane: 60° (Average)
  • Nominal Impedance: 50ohms
  • Max Input Power: 50w
  • Connector: N Female
  • Cable Type: Rg58
  • Operated Temperature: -40 ~ 60°c
  • Cable Length: 200 Mm
  • Size: 65 * 210 * 290 Mm
  • Weight: 0.52 Kg


Packing Included

  • 1 * 9dbi Lpda Yagi Antenna
  • 1 * U-bolt Bracket


Warranty : 2 Week

  • 7 Days One to One Exchange if the Goods Are Damaged in Shipping


Call/ Sms/ Whatsapp

  • Mr.Wong : +6012-8822600 / +6018-4089135
