JK-560S Walkie Talkie Frequency & Power Meter

JK-560S Walkie Talkie Frequency & Power Meter

| 0 reviews
RM262.50 RM290.00
9% OFF
SKU: JK-560S
Item left 2
Sold By CHMOBILECAM
Warranty 7 Day Warranty
Weight 0.30 Kg
Shipping
Gvado Standard DeliveryStandard Delivery

logoONLY release payment to the merchants after the items were received by the buyers.

Share

CHMOBILECAM

VISIT SHOP

Products

456

Ratings

ASK SELLER

Price Drop Notifications

NOTIFY ME

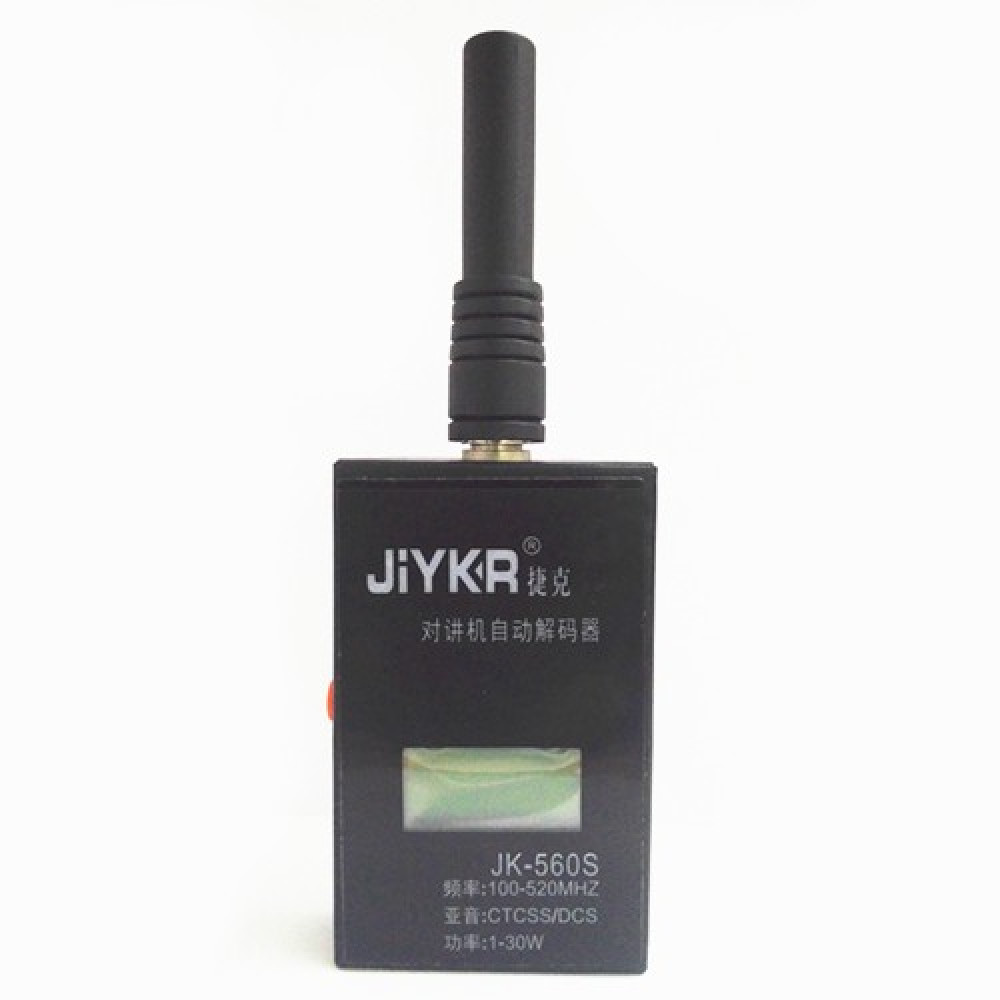

The Jk-560s Frequency and Power Meter With the Led Display Screen Is Designed for Measure the Frequency,power and the Tone(Ctcss/dcs) of the Radio Devices. Thanks to the Built-in Dummy Load, Which Gives the Said Device More Relaiable Proformance and Easier to Be Carried.you May Choose the Right Mode to Measure the Frequency or Rf Power or the Tone by Connecting or Unconnecting to the Transmitter to Be Measured.


Functional Description

  • Led Display Screen
  • Frequency Tested,rf Power Tested,tone(Ctcss/dcs) Tested 3 in 1
  • Built-in 1500mah Rechargeable Li-ion
  • Battery Save Mode, the Device Will Be Off Automatically if It Is Free for 1 Minutes
  • Auto 0.1khz


Specifications

  • Frequency Range:100mhz---520mhz
  • Rf Power Range:1w---30w
  • Impedance Input: 50 Ohm
  • Distance Covered : 1m for U-band and V-band
  • Response Time: 0.2s
  • Working Temperature: -20°c~+60°c
  • Battery: Built-in 1500mah Rechargeable Li-ion Battery
  • Current Consumption: About 100ma
  • Auto Power Offtime: 60s


Package Included

  • 1 * Jk-560s Frequency Counter
  • 1 * Antenna
  • 1 * Converting Connector
  • 1 * Connect Cable
  • 1 * Usb Charging Cable
  • 1 * Power Adapter


Warranty : 2 Week

  • 7 Days One to One Exchange if the Goods Are Damaged in Shipping
